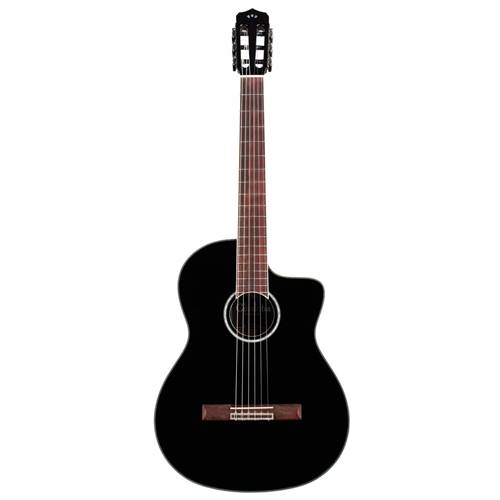

Cordoba Fusion 5 Jet Classical Guitar
Córdoba’s entry into the fusion line! The perfect choice to transition from a steel string to a nylon guitar, the Córdoba Fusion 5 features a solid spruce top, mahogany back and sides, a full body with cutaway for extended playing range, side dot fret position markers, and a pearl decal rosette and arches. The fusion neck with a 16” radius fretboard and smaller, 1 7/8” (48mm) nut width provides a playing experience very close to that of a steel string guitar. This familiarity offers an easy transition for steel string players and players with smaller hands to the world of nylon string guitar. Added side dot markers also depart from traditional nylon string guitar construction, providing players reference for their position on the fretboard. Equipped with the Fishman Sonitone Pickup System, the Fusion 5 is ready to plug in and play. Available in Gloss Natural and Jet-Black finish with mahogany back and sides and Gloss Sonata Burst with elegant flamed mahogany back and sides.
Specifications:
- Soundboard Thickness: 2.8 - 3.0 mm
- Family: Cutaway & Electric
- Build: Fusion
- Construction: Solid Top
- Body Top: Solid Spruce
- Top Bracing Pattern: Fan
- Does it contain shell?: No
- Shipper Carton Dimensions: 104 x 47 x 14
- Back Purfling Inlay Pattern & Dimensions: N / A
- Soundhole Diameter: 84mm (3 1/3")
- Rosette: Pearl Style Decal
- Top Binding: Composite
- Back Bracing: Ladder Bracing
- Back Binding: Composite
- Side Purfling Inlay Pattern & Dimensions: N / A
- Back Center Strip: Composite
- Side Purfling Inlay: N / A
- Back and Sides Wood: Mahogany
- Back Purfling Inlay: N / A
- Top Purfling Pattern & Dimensions: N / A
- Frets to Body: 12
- Neck Material: Mahogany
- Scale Length: 650mm (25.6")
- Compatible Case 1: ACHUMPR-04072 - HumiCase Protégé Classical
- Neck Construction: Traditional 3 Piece Neck
- Neck Joint: Dovetail
- Neck Shape: C Shape
- Nut Width: 48mm (1 7/8")
- Neck Thickness 1st Fret: 21mm
- Neck Thickness 9th Fret: 24mm
- Battery Pack Installation Location: Lower Bout Treble Side
- Truss Rod: Dual Action
- Tuning Machines Vendor & Model: Der Jung DJ216GK-A1W (S2)
- Tuning Machine Ratio: 14:1
- Compatible Gig Bag 1: ACCASIB-03543 - Cordoba Deluxe Gig Bag Classical Full Size
- Truss Rod Wrench: 4mm Allen Key
- Fingerboard Material: Pau Ferro
- Compatible Case 2: 03754 - Cordoba Humidified Archtop Wood Case CL/FL Full Size Brown
- Fingerboard Inlays: N / A
- Frets Total: 19
- Color: Black (BLK)
- Finish: Gloss Polyurethane
- Bridge Material: Pau Ferro
- Headstock Logo: Cordoba Arches Logo - Pearl Style Decal
- Target Instrument Weight: 3 lbs / 1.4 kg
- Tuning Machine Buttons: Black
- Nut Material: Bone
- Battery Pack: Fishman Combination Battery Box/Output Jack - 9V
- Waist Width: 248mm (9 3/4")
- Headplate: Pau Ferro
- Tuning Machines: Cordoba Silver with Black Buttons
- Middle Pickup: None
- Pickup Type: Undersaddle Piezo, Onboard Tuner
- Electronics Vendor & Model: Fishman OEM-SON-CL4
- Tap Plate: N / A
- Electronics: Fishman Sonitone Classical
- Strings: Savarez Cristal Corum High Tension 500CJ
- Upper Bout Width: 292mm (11 1/2")
- Lower Bout Width: 371mm (14 5/8")
- Body Depth Upper Bout: 95mm (3 3/4")
- Body Depth Lower Bout: 100mm (4")
- Body Length: 489mm (19 1/4")
- Replacement Case: N / A
- Replacement Battery Box & Output Jack: 05013 - Cordoba Pickup Part Fishman Battery Box Output Jack Unit
- Replacement Output Jack: N / A
- Replacement Saddle: 01066 - Cordoba Saddle Bone 6 String Guitar Radiused 80mm x 3mm
- Replacement Pickup & Preamp System: ACFISHM-05065 - Cordoba Pickup Fishman Sonitone Complete
- Number of Strings: 6
- Replacement Bridge Pins: N / A
- Replacement Truss Rod Wrench: 008-0000-001 - Truss Rod Wrench 4mm Allen Key
- Replacement Nut: 01053 - Cordoba Nut Bone 6 String Guitar 48mm x 5mm
- Replacement Tuning Machine Button: N / A
- Replacement Truss Rod Cover: N / A
- Replacement Tuning Machine - Bass: ACCORTM-05683 - Cordoba Tuner Honeycomb NKL w/EB OV BTN Bass
- Replacement Tuning Machine - Treble: ACCORTM-05682 - Cordoba Tuner Honeycomb NKL w/EB OV BTN Treble
- Tuning: E-A-D-G-B-E
- Replacement Gig Bag: N / A
- Replacement Pickguard: N / A
- Overall Length: 984mm (38 3/4")
- Country of Origin: China
- Compatible Case 3: ACCORGB-03780 - Cordoba Polyfoam Case Classical Full Size
- Saddle Material: Bone
- Compatible Gig Bag 2: ACCORGB-03750 - Cordoba Standard Gig Bag Full Size
Model: | 05405 |
Manufacturer: | Cordoba |
